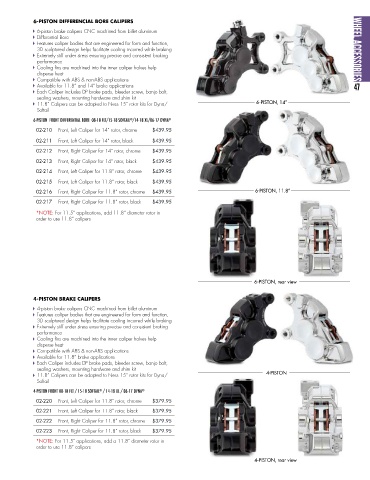

6-PISTON DIFFERENCIAL BORE CALIPERS
4 6-piston brake calipers CNC machined from billet aluminum
4 Differential Bore
4 Features caliper bodies that are engineered for form and function,
3D sculptured design helps facilitate cooling incurred while braking WHEEL ACCESSORIES
4 Extremely stiff under stress ensuring precise and consistent braking
performance
4 Cooling fins are machined into the inner caliper halves help
disperse heat
4 Compatible with ABS & non-ABS applications
WHEEL ACCESSORIES
WHEEL ACCESSORIES
4 Available for 11.8” and 14” brake applications 47
4 Each Caliper includes DP brake pads, bleeder screw, banjo bolt,
sealing washers, mounting hardware and shim kit
4 11.8” Calipers can be adapted to Ness 15” rotor kits for Dyna/ 6-PISTON, 14”
Softail
6-PISTON FRONT DIFFERENTIAL BORE 08-18 FLT/15-18 SOFTAIL /14-18 XL/06-17 DYNA ®
®
02-210 Front, Left Caliper for 14” rotor, chrome $439.95
02-211 Front, Left Caliper for 14” rotor, black $439.95
02-212 Front, Right Caliper for 14” rotor, chrome $439.95

02-213 Front, Right Caliper for 14” rotor, black $439.95
02-214 Front, Left Caliper for 11.8” rotor, chrome $439.95
02-215 Front, Left Caliper for 11.8” rotor, black $439.95
02-216 Front, Right Caliper for 11.8” rotor, chrome $439.95 6-PISTON, 11.8”
02-217 Front, Right Caliper for 11.8” rotor, black $439.95
*NOTE: For 11.5” applications, add 11.8” diameter rotor in
order to use 11.8” calipers

6-PISTON, rear view

4-PISTON BRAKE CALIPERS
4 4-piston brake calipers CNC machined from billet aluminum
4 Features caliper bodies that are engineered for form and function,
3D sculptured design helps facilitate cooling incurred while braking
4 Extremely stiff under stress ensuring precise and consistent braking
performance
4 Cooling fins are machined into the inner caliper halves help
disperse heat
4 Compatible with ABS & non-ABS applications
4 Available for 11.8” brake applications
4 Each Caliper includes DP brake pads, bleeder screw, banjo bolt,
sealing washers, mounting hardware and shim kit
4 11.8” Calipers can be adapted to Ness 15” rotor kits for Dyna/ 4-PISTON
Softail
4-PISTON FRONT 08-18 FLT / 15-18 SOFTAIL / 14-18 XL / 06-17 DYNA ®
®
02-220 Front, Left Caliper for 11.8” rotor, chrome $379.95
02-221 Front, Left Caliper for 11.8” rotor, black $379.95
02-222 Front, Right Caliper for 11.8” rotor, chrome $379.95
02-223 Front, Right Caliper for 11.8” rotor, black $379.95
*NOTE: For 11.5” applications, add a 11.8” diameter rotor in
order to use 11.8” calipers
4-PISTON, rear view
