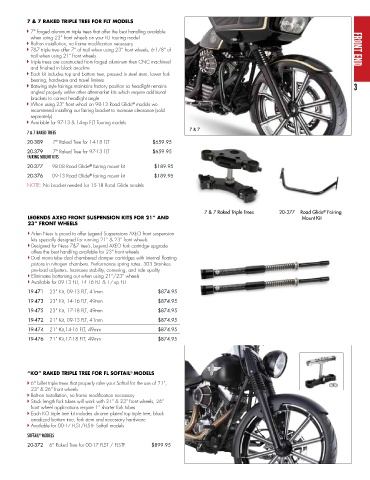

Page 7 - ArlenNess

7 & 7 RAKED TRIPLE TREE FOR FLT MODELS
4 7° forged aluminum triple trees that offer the best handling available
when using 23” front wheels on your FLT touring model
4 Bolt-on installation, no frame modification necessary
4 7&7 triple tree offer 7” of trail when using 23” front wheels, 6-1/8” of FRONT END
trail when using 21” front wheels
4 Triple trees are constructed from forged aluminum then CNC machined
and finished in black anodize
4 Each kit includes top and bottom tree, pressed in steel stem, lower fork
bearing, hardware and travel limiters
4 Batwing style fairings maintains factory position so headlight remains 3
angled properly unlike other aftermarket kits which require additional
brackets to correct headlight angle
4 When using 23” front wheel on 98-13 Road Glide models we
®
recommend installing our fairing bracket to increase clearance (sold
separately)
4 Available for 97-13 & 14-up FLT Touring models
7 & 7
7 & 7 RAKED TREES
20-389 7° Raked Tree for 14-18 FLT $659.95
20-379 7° Raked Tree for 97-13 FLT $659.95
FAIRING MOUNT KITS
20-377 98-08 Road Glide fairing mount kit $189.95
®
20-376 09-13 Road Glide fairing mount kit $189.95
®
NOTE: No bracket needed for 15-18 Road Glide models

7 & 7 Raked Triple Treesriple Trees
7 & 7 Raked T 20-377 Road Glide Fairing
®
LEGENDS AXEO FRONT SUSPENSION KITS FOR 21” AND Mount Kit
23” FRONT WHEELS
4 Arlen Ness is proud to offer Legend Suspensions AXEO front suspension
kits specially designed for running 21” & 23” front wheels
4 Designed for Ness 7&7 tree’s, Legend AXEO fork cartridge upgrade
offers the best handling available for 23” front wheels
4 Dual mono-tube dual chambered damper cartridges with internal floating
pistons in nitrogen chambers. Performance spring rates. 303 Stainless
pre-load adjusters. Increases stability, cornering, and ride quality
4 Eliminates bottoming out when using 21”/23” wheels
4 Available for 09-13 FLT, 14-16 FLT & 17-up FLT
19-471 23” Kit, 09-13 FLT, 41mm $874.95
19-473 23” Kit, 14-16 FLT, 49mm $874.95
19-475 23” Kit, 17-18 FLT, 49mm $874.95
19-472 21” Kit, 09-13 FLT, 41mm $874.95
19-474 21” Kit,14-16 FLT, 49mm $874.95
19-476 21” Kit,17-18 FLT, 49mm $874.95

“KO” RAKED TRIPLE TREE FOR FL SOFTAIL MODELS
®
4 6° billet triple trees that properly rake your Softail for the use of 21”,
23” & 26” front wheels
4 Bolt-on installation, no frame modification necessary
4 Stock length fork tubes will work with 21” & 23” front wheels, 26”
front wheel applications require 1” shorter fork tubes
4 Each KO triple tree kit includes chrome plated top triple tree, black
anodized bottom tree, fork stem and necessary hardware
4 Available for 00-17 FLST/FLSTF Softail models
SOFTAIL MODELS
®
20-372 6° Raked Tree for 00-17 FLST / FLSTF $899.95
