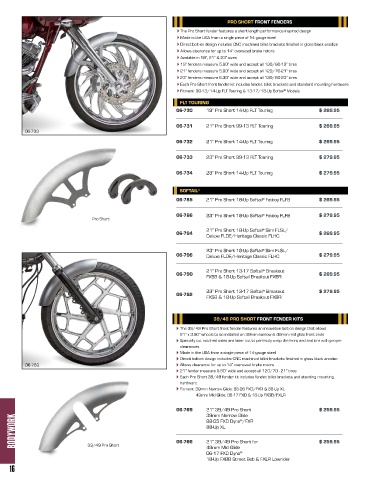

Page 18 - Arlen Ness 2020 Catalog

PRO SHORT FRONT FENDERS
4 The Pro Short fender features a short length performance inspired design
4 Made in the USA from a single piece of 14-gauge steel
4 Direct bolt-on design includes CNC machined billet brackets finished in gloss black anodize
4 Allows clearance for up to 14” oversized brake rotors
4 Available in 19”, 21” & 23” sizes
4 19” fenders measure 5.90” wide and accept all 130/60-19” tires
4 21” fenders measure 5.90” wide and accept all 120/70-21” tires
4 23” fenders measure 6.30” wide and accept all 130/60-23” tires
4 Each Pro Short front fender kit includes fender, billet brackets and standard mounting hardware
®
4 Fitment: 99-13/14-Up FLT Touring & 13-17/18-Up Softail Models
FLT TOURING
06-730 19” Pro Short 14-Up FLT Touring $ 269.95

06-731 21” Pro Short 99-13 FLT Touring $ 269.95
06-733
06-732 21” Pro Short 14-Up FLT Touring $ 269.95

06-733 23” Pro Short 99-13 FLT Touring $ 279.95

06-734 23” Pro Short 14-Up FLT Touring $ 279.95

SOFTAIL ®
06-785 21” Pro Short 18-Up Softail Fatboy FLFB $ 269.95
®

06-786 23” Pro Short 18-Up Softail Fatboy FLFB $ 279.95
®
Pro Short
21” Pro Short 18-Up Softail Slim FLSL/
®
06-794 Deluxe FLDE/Heritage Classic FLHC $ 269.95
23” Pro Short 18-Up Softail Slim FLSL/
®
06-796 Deluxe FLDE/Heritage Classic FLHC $ 279.95
®
06-790 21” Pro Short 13-17 Softail Breakout $ 269.95
FXSB & 18-Up Softail Breakout FXBR
23” Pro Short 13-17 Softail Breakout $ 279.95
®
06-792
FXSB & 18-Up Softail Breakout FXBR

39/49 PRO SHORT FRONT FENDER KITS
4 The 39/49 Pro Short front fender features an innovative bolt-on design that allows
21” x 3.50” wheels to be installed on 39mm narrow & 49mm mid glide front ends
4 Specially cut notched sides are laser cut to perfectly wrap the front end and tire with proper
clearances
4 Made in the USA from a single piece of 14-gauge steel
4 Direct bolt-on design includes CNC machined billet brackets finished in gloss black anodize
06-769 4 Allows clearance for up to 14” oversized brake rotors
4 21” fender measure 5.90” wide and accept all 120/70 - 21” tires
4 Each Pro Short 39/49 fender kit includes fender, billet brackets and standing mounting
hardware
4 Fitment: 39mm Narrow Glide: 88-05 FXD/FXR & 88-Up XL
49mm Mid Glide: 06-17 FXD & 18-Up FXBB/FXLR

06-769 21” 39/49 Pro Short $ 259.95
39mm Narrow Glide
BODYWORK 06-766 88-05 FXD Dyna /FXR $ 259.95
®
88-Up XL
21” 39/49 Pro Short for
39/49 Pro Short
49mm Mid Glide
06-17 FXD Dyna ®
18-Up FXBB Street Bob & FXLR Lowrider
16
