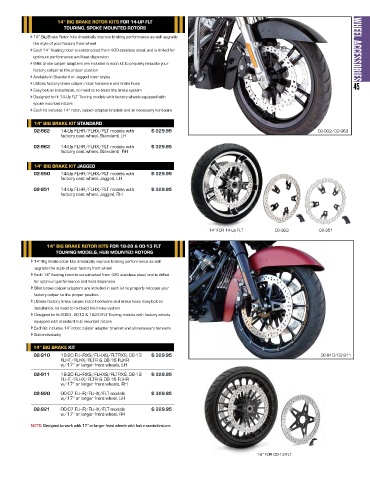

Page 47 - Arlen Ness 2020 Catalog

14” BIG BRAKE ROTOR KITS FOR 14-UP FLT
TOURING, SPOKE MOUNTED ROTORS
4 14” Big Brake Rotor Kits drastically improve braking performance as well upgrade

the style of your factory front wheel
4 Each 14” floating rotor is constructed from 420 stainless steel, and is drilled for WHEEL ACCESSORIES
optimum performance and heat dispersion
4 Billet brake caliper adapters are included in each kit to properly relocate your
factory caliper to the proper position
4 Available in Standard or Jagged rotor styles
4 Utilizes factory brake caliper, rotor hardware and brake hose 45
4 Easy bolt-on installation, no need to re-bleed the brake system
4 Designed to fit 14-Up FLT Touring models with factory wheels equipped with
spoke mounted rotors
4 Each kit includes 14” rotor, caliper adapter bracket and all necessary hardware

14” BIG BRAKE KIT STANDARD
02-962 14-Up FLHR/FLHX/FLT models with $ 329.95 02-962/02-963
factory cast wheel, Standard, LH

02-963 14-Up FLHR/FLHX/FLT models with $ 329.95
factory cast wheel, Standard, RH

14” BIG BRAKE KIT JAGGED
02-950 14-Up FLHR/FLHX/FLT models with $ 329.95
factory cast wheel, Jagged, LH
02-951 14-Up FLHR/FLHX/FLT models with $ 329.95
factory cast wheel, Jagged, RH

14” FOR 14-Up FLT 02-963 02-951

14” BIG BRAKE ROTOR KITS FOR 18-20 & 00-13 FLT
TOURING MODELS, HUB MOUNTED ROTORS
4 14” Big Brake rotor kits drastically improve braking performance as well
upgrade the style of your factory front wheel
4 Each 14” floating rotor is constructed from 420 stainless steel, and is drilled
for optimum performance and heat dispersion
4 Billet brake caliper adapters are included in each kit to properly relocate your
factory caliper to the proper position
4 Utilizes factory brake caliper, rotor hardware and brake hose. Easy bolt-on
installation, no need to re-bleed the brake system
4 Designed to fit 2000 - 2013 & 18-20 FLT Touring models with factory wheels
equipped with standard hub mounted rotors
4 Each kit includes 14” rotor, caliper adapter bracket and all necessary harware
4 Sold individually

14” BIG BRAKE KIT
02-910 18-20 FLHRXS/FLHXS/FLTRXS, 08-13 $ 329.95 02-910/02-911
FLHT/FLHX/FLTR & 08-16 FLHR
w/17” or larger front wheels, LH
02-911 18-20 FLHRXS/FLHXS/FLTRXS, 08-13 $ 329.95
FLHT/FLHX/FLTR & 08-16 FLHR
w/17” or larger front wheels, RH
02-920 00-07 FLHR/FLHX/FLT models $ 329.95
w/17” or larger front wheel, LH
02-921 00-07 FLHR/FLHX/FLT models $ 329.95
w/17” or larger front wheel, RH
NOTE: Designed to work with 17” or larger front wheels with hub mounted rotors

14” FOR 00-13 FLT
