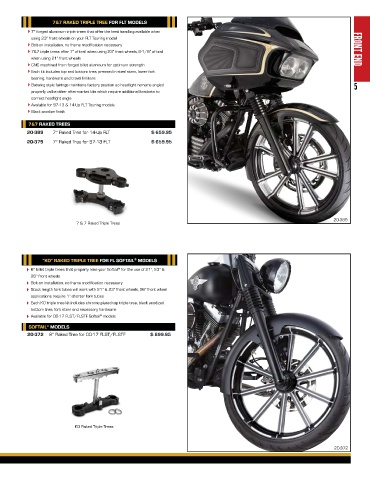

Page 7 - Arlen Ness 2020 Catalog

7&7 RAKED TRIPLE TREE FOR FLT MODELS
4 7° forged aluminum triple trees that offer the best handling available when
using 23” front wheels on your FLT Touring model
4 Bolt-on installation, no frame modification necessary
4 7&7 triple trees offer 7” of trail when using 23” front wheels, 6-1/8” of trail FRONT END
when using 21” front wheels
4 CNC machined from forged billet aluminum for optimum strength
4 Each kit includes top and bottom tree, pressed in steel stem, lower fork
bearing, hardware and travel limiters
4 Batwing style fairings maintains factory position so headlight remains angled 5
properly unlike other aftermarket kits which require additional brackets to
correct headlight angle
4 Available for 97-13 & 14-Up FLT Touring models
4 Black anodize finish

7&7 RAKED TREES
20-389 7° Raked Tree for 14-Up FLT $ 659.95
20-379 7° Raked Tree for 97-13 FLT $ 659.95

20-389
7 & 7 Raked Triple Trees

“KO” RAKED TRIPLE TREE FOR FL SOFTAIL MODELS
®
®
4 6° billet triple trees that properly rake your Softail for the use of 21”, 23” &
26” front wheels
4 Bolt-on installation, no frame modification necessary
4 Stock length fork tubes will work with 21” & 23” front wheels, 26” front wheel
applications require 1” shorter fork tubes
4 Each KO triple tree kit includes chrome plated top triple tree, black anodized
bottom tree, fork stem and necessary hardware
®
4 Available for 00-17 FLST/FLSTF Softail models
SOFTAIL MODELS
®
20-372 6° Raked Tree for 00-17 FLST/FLSTF $ 899.95

KO Raked Triple Trees

20-372
