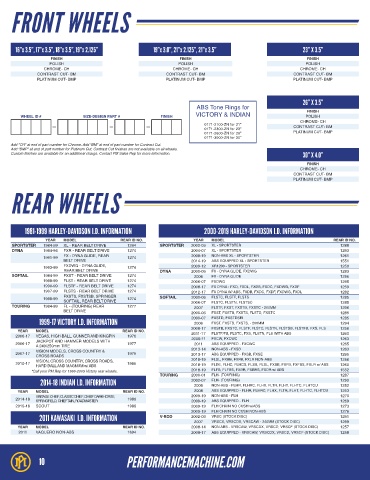

Page 10 - PM Supplement

FRONT WHEELS

16”x 3.5”, 17”x 3.5”, 18”x 3.5”, 19”x 2.125” 19”x 3.0”, 21”x 2.125”, 21”x 3.5” 23” X 3.5”

FINISH FINISH FINISH
POLISH POLISH POLISH
CHROME- CH CHROME- CH CHROME- CH
CONTRAST CUT- BM CONTRAST CUT- BM CONTRAST CUT- BM
PLATINUM CUT- BMP PLATINUM CUT- BMP PLATINUM CUT- BMP

26” X 3.5”
ABS Tone Rings for
FINISH
VICTORY & INDIAN
WHEEL ID # SIZE-DESIGN PART # FINISH POLISH
CHROME- CH
0171-2100-ZN for 21”
0171-2300-ZN for 23” CONTRAST CUT- BM
0171-2600-ZN for 26” PLATINUM CUT- BMP
0171-3000-ZN for 30”
Add “CH” at end of part number for Chrome. Add “BM” at end of part number for Contrast Cut.
Add “BMP” at end of part number for Platinum Cut. Contrast Cut finishes are not available on all wheels.
30” X 4.0”
Custom finishes are available for an additional charge. Contact PM Sales Rep for more information.
FINISH
CHROME- CH
CONTRAST CUT- BM
PLATINUM CUT- BMP
REAR WHEELS

1981-1999 HARLEY-DAVIDSON I.D. INFORMATION 2000-2019 HARLEY-DAVIDSON I.D. INFORMATION
YEAR MODEL REAR ID NO. YEAR MODEL REAR ID NO.
SPORTSTER 1984-99 XL - REAR BELT DRIVE 1264 SPORTSTER 2000-03 XL - SPORTSTER 1288
DYNA 1984-94 FXR - REAR BELT DRIVE 1274 2004-07 XL - SPORTSTER 1293
FX - DYNA GLIDE, REAR 2008-19 NON-ABS XL - SPORTSTER 1261
1991-99 1274
BELT DRIVE 2014-19 ABS EQUIPPED XL - SPORTSTER 1551
FXDWG - DYNA GLIDE, 2009-12 XR1200 - SPORTSTER 1250
1993-99 1274
REAR BELT DRIVE DYNA 2000-06 FX - DYNA GLIDE, FXDWG 1283
SOFTAIL 1984-99 FXST - REAR BELT DRIVE 1274 2006 FX - DYNA GLIDE 1295
1988-99 FLST - REAR BELT DRIVE 1274 2006-07 FXDWG 1295
1990-99 FLSTF - REAR BELT DRIVE 1274 2008-17 FX DYNA - FXD, FXDL, FXDB, FXDC, FXDWG, FXDF 1259
1997-99 FLSTS - REAR BELT DRIVE 1274 2012-17 FX DYNA W/ ABS, FXDB, FXDC, FXDF, FXDWG, FXDL 1282
FXSTS, FXSTSB, SPRINGER SOFTAIL 2000-06 FLSTC, FLSTF, FLSTS 1285
1988-99 1274
SOFTAIL, REAR BELT DRIVE 2006-07 FLSTC, FLSTN, FLSTSC 1285
TOURING 1984-99 FL - (TOURING) REAR 1277 2007 FLSTF, FXST, FXSTB, FXSTC - 200MM 1296
BELT DRIVE
2000-06 FXST, FXSTB, FXSTS, FLSTD, FXSTC 1285
1999-17 VICTORY I.D. INFORMATION 2000-07 FXSTD, FXSTDSEI 1285
1294
FXST, FXSTB, FXSTS, - 200MM
2006
2008-17 FXSTB, FXSTC, FLSTF, FLSTC, FLSTN, FLSTSB, FLSTFB, FXS, FLS 1256
YEAR MODEL REAR ID NO.
2011-17 FLSTF/FB, FLSTC, FXS, FLSTN, FLS WITH ABS 1260
2006-17 VEGAS, HIGH-BALL, GUNNER AND KINGPIN 1976
2008-11 FXCW, FXCWC 1263
JACKPOT AND HAMMER MODELS WITH
2006-17 1977 2011 ABS EQUIPPED - FXCWC 1265
A 240/250mm TIRE
2013-14 NON-ABS - FXSB 1263
VISION MODELS, CROSS COUNTRY &
2007-17 1979 2013-17 ABS EQUIPPED - FXSB, FXSE 1265
CROSS ROADS
VISION, CROSS COUNTRY, CROSS ROADS, 2018-19 FLSL, FXBB, FXFB, FXLR NON-ABS 1256
2010-17 1985 2018-19 FLDE, FLHC, FLHCS, FLSB, FLSL, FXBB, FXFB, FXFBS, FXLR w/ ABS 1260
HARD BALL AND MAGNUM w/ ABS
*Call your PM Rep for 1999-2005 Victory rear wheels. 2018-19 FLFB, FLFBS, FXBR, FXBRS, FXDR w/ ABS 1552
TOURING 2000-01 FLH- (TOURING) 1287
2014-18 INDIAN I.D. INFORMATION 2002-07 FLH- (TOURING) 1290
1252
NON-ABS - FLHR, FLHRC, FLHX, FLTR, FLHT, FLHTC, FLHTCU
2008
YEAR MODEL REAR ID NO. 2008 ABS EQUIPPED - FLHR, FLHRC, FLHX, FLTR, FLHT, FLHTC, FLHTCU 1253
VINTAGE CHIEF, CLASSIC CHIEF, CHIEF DARKHORSE, 2009-19 NON-ABS - FLH 1270
2014-18 1986
SPRINGFIELD, CHIEFTAIN, ROADMASTER 2009-19 ABS EQUIPPED - FLH 1269
2015-18 SCOUT 1988 2009-19 FLH CHAIN NO CUSH w/ABS 1273
2009-19 FLH CHAIN NO CUSH NON-ABS 1276
2011 KAWASAKI I.D. INFORMATION V-ROD 2002-06 VRSC (STOCK DISC) 1291
2007 VRSCX, VRSCDX, VRSCAW - 240MM (STOCK DISC) 1299
YEAR MODEL REAR ID NO. 2008-14 NON ABS - VRSCAW, VRSCDX, VRSCD, VRSCF (STOCK DISC) 1257
2011 VAQUERO NON-ABS 1694 2008-17 ABS EQUIPPED - VRSCAW, VRSCDX, VRSCD, VRSCF (STOCK DISC) 1258
