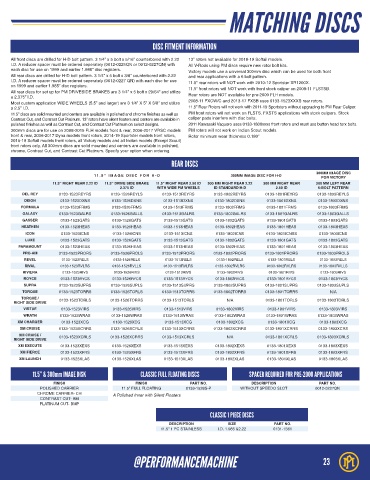

Page 23 - PM Supplement

MATCHING DISCS

DISC FITMENT INFORMATION

All front discs are drilled for H-D bolt pattern. 3 1/4” x 5 bolt x 5/16” counterbored with 2.22 13” rotors not available for 2018-19 Softail models.
I.D. A reducer spacer must be ordered seperately (0012-0225QN or 0012-0227QN) with All V-Rods using PM discs require new rotor bolt kits.
each disc for use on 1999 and earlier 1.985” disc registers.
Victory models use a universal 300mm disc which can be used for both front
All rear discs are drilled for H-D bolt pattern. 3 1/4” x 5 bolt x 3/8” counterbored with 2.22 and rear applications with a 6 bolt pattern.
I.D. A reducer spacer must be ordered seperately (0012-0227 QN) with each disc for use 11.5” rear rotors will NOT work with 2010-12 Sportster XR1200X.
on 1999 and earlier 1.985” disc registers.
11.5” front rotors will NOT work with front stock caliper on 2008-11 FLSTSB.
All rear discs for set up for PM DRIVESIDE BRAKES are 3 1/4” x 5 bolt x 29/64” and utilize
a 2.375” I.D. Rear rotors are NOT available for pre-2000 FLH models.
2008-11 FXCW/C and 2013-17 FXSB uses 0133-1523XXXS rear rotors.
Most custom application WIDE WHEELS (5.5” and larger) are 3 1/4” X 5” X 3/8” and utilize
a 2.5” I.D. 11.5” Rear Rotors will not work with 2011-19 Sportsters without upgrading to PM Rear Caliper.
11.5” discs are solid mounted and centers are available in polished and chrome finishes as well as PM front rotors will not work on FLSTS, FXSTS applications with stock calipers. Stock
Contrast Cut, and Contrast Cut Platinum. 13” rotors have silent floaters and centers are available in caliper pads interfere with disc bolts.
polished finishes as well as Contrast Cut, and Contrast Cut Platinum on select designs. 2011 Kawasaki Vaquero uses 0133-1800xxxs front rotors and must use button head torx bolts.
300mm discs are for use on 2008-2019 FLH models front & rear, 2006-2017 VRSC models PM rotors will not work on Indian Scout models.
front & rear, 2006-2017 Dyna models front rotors, 2014-19 Sportster models front rotors, Rotor minimum wear thickness 0.180”
2015-19 Softail models front rotors, all Victory models and all Indian models (Except Scout)
front rotors only. All 300mm discs are solid mounted and centers are available in polished,
chrome, Contrast Cut, and Contrast Cut Platinum. Specify your option when ordering.
REAR DISCS
300MM IMAGE DISC
1 1.5” IMAGE DISC FOR H-D 300MM IMAGE DISC FOR H-D
FOR VICTORY
11.5” RIGHT REAR 2.22 ID 11.5” DRIVE SIDE BRAKE 11.5” RIGHT REAR 2.50 ID 300 MM RIGHT REAR 2.22 300 MM RIGHT REAR 300 MM LEFT REAR
2.375 ID WITH WIDE PM WHEELS ID STANDARD H-D 2.50 ID 6-BOLT PATTERN
DEL REY 0133-1523REYRS 0133-1526REYLS 0133-1513REYRS 0133-1802REYRS 0133-1801REYRS 0133-1803REYLS
DIXON 0133-1523DXNS 0133-1526DXNS 0133-1513DXNS 0133-1802DXNS 0133-1801DXNS 0133-1803DXNS
FORMULA 0133-1523FRMS 0133-1526FRMS 0133-1513FRMS 0133-1802FRMS 0133-1801FRMS 0133-1803FRMS
GALAXY 0133-1523GALRS 0133-1526GALLS 0133-1513GALRS 0133-1802GALRS 0133-1801GALRS 0133-1803GALLS
GASSER 0133-1523GATS 0133-1526GATS 0133-1513GATS 0133-1802GATS 0133-1801GATS 0133-1803GATS
HEATHEN 0133-1523HEAS 0133-1526HEAS 0133-1513HEAS 0133-1802HEAS 0133-1801HEAS 0133-1803HEAS
ICON 0133-1523ICNS 0133-1526ICNS 0133-1513ICNS 0133-1802ICNS 0133-1801ICNSS 0133-1803ICNS
LUXE 0133-1523GATS 0133-1526GATS 0133-1513GATS 0133-1802GATS 0133-1801GATS 0133-1803GATS
PARAMOUNT 0133-1523HEAS 0133-1526HEAS 0133-1513HEAS 0133-1802HEAS 0133-1801HEAS 0133-1803HEAS
PRO-AM 0133-1523PRORS 0133-1526PROLS 0133-1513PRORS 0133-1802PRORS 0133-1801PRORS 0133-1803PROLS
REVEL 0133-1523RELS 0133-1526RELS 0133-1513RELS 0133-1802RELS 0133-1801RELS 0133-1803RELS
RIVAL 0133-1523RVLRS 0133-1526RVLLS 0133-1513RVLRS 0133-1802RVLRS 0133-1802RVLRS 0133-1803RVLLS
RIVIERA 0133-1523RIVS 0133-1526RIVS 0133-1513RIVS 0133-1802RIVS 0133-1801RIVS 0133-1803RIVS
ROYCE 0133-1523RYCS 0133-1526RYCS 0133-1513RYCS 0133-1802RYCS 0133-1801RYCS 0133-1803RYCS
SUPRA 0133-1523SUPRS 0133-1526SUPLS 0133-1513SUPRS 0133-1802SUPRS 0133-1801SUPRS 0133-1803SUPLS
TORQUE 0133-1523TORRS 0133-1526TORLS 0133-1513TORRS 0133-1802TORRS 0133-1801TORRS N/A
TORQUE / 0133-1523TORLS 0133-1526TORRS 0133-1513TORLS N/A 0133-1801TORLS 0133-1803TORLS
RIGHT SIDE DRIVE
VIRTUE 0133-1523VIRS 0133-1526VIRS 0133-1513VIRS 0133-1802VIRS 0133-1801VIRS 0133-1803VIRS
WRATH 0133-1523WRAS 0133-1526WRAS 0133-1513WRAS 0133-1802WRAS 0133-1801WRAS 0133-1803WRAS
XM CHARGER 0133-1523XCG 0133-1526XCG 0133-1513XCG 0133-1802XCG 0133-1801XCG 0133-1803XCG
XM CRUISE 0133-1523XCRRS 0133-1526XCRLS 0133-1513XCRRS 0133-1802XCRRS 0133-1801XCRRS 0133-1803XCRS
XM CRUISE / 0133-1523XCRLS 0133-1526XCRRS 0133-1513XCRLS N/A 0133-1801XCRLS 0133-1803XCRLS
RIGHT SIDE DRIVE
XM EXECUTE 0133-1523XEXS 0133-1526XEXS 0133-1513XEXS 0133-1802XEXS 0133-1801XEXS 0133-1803XEXS
XM FIERCE 0133-1523XFRS 0133-1523XFRS 0133-1513XFRS 0133-1802XFRS 0133-1801XFRS 0133-1803XFRS
XM LAUNCH 0133-1523XLAS 0133-1526XLAS 0133-1513XLAS 0133-1802XLAS 0133-1801XLAS 0133-1803XLAS
11.5” & 300mm IMAGE DISK CLASSIC FULL FLOATING DISCS SPACER REQUIRED FOR PRE-2000 APPLICATIONS

FINISH FINISH PART NO. DESCRIPTION PART NO.
POLISHED CARRIER 11.5” FULL FLOATING 0133-1528S-P WITHOUT SPEEDO SLOT 0012-0227QN
CHROME CARRIER- CH
A Polished Inner with Silent Floaters
CONTRAST CUT- BM
PLATINUM CUT- BMP
CLASSIC 1 PIECE DISCS
DESCRIPTION SIZE PART NO.
11.5” 1 PC STAINLESS I.D. 1.985 &2.22 0131-1561
