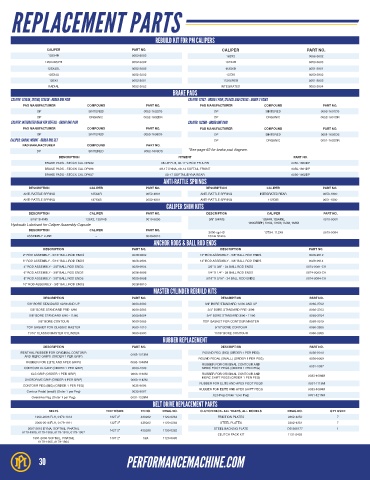

Page 30 - PM Supplement

REPLACEMENT PARTS

REBUILD KIT FOR PM CALIPERS

CALIPER PART NO. CALIPER PART NO.
125X4R 0052-3002 162X2 0056-3002
125X4RSPH 0052-3002 137X4B 0053-3903
125X4SL 0052-3002 112X6B 0051-3901
125X4S 0052-3002 137X6 0053-3902
125X2 0052-3001 112X6RSB 0051-3902
RADIAL 0052-3002 INTEGRATED 0053-3904
BRAKE PADS
CALIPER: 125X4R, 137X4B, 125X4B - ORDER ONE PAIR CALIPER: 125X2 - ORDER 1 PAIR, 125X4SL AND 125X4S - ORDER 2 PAIRS
PAD MANUFACTURER COMPOUND PART NO. PAD MANUFACTURER COMPOUND PART NO.
DP SINTERED 0052-1602DS DP SINTERED 0052-1601DS
DP ORGANIC 0052-1602DR DP ORGANIC 0052-1601DR
CALIPER: INTEGRATED REAR FOR SOFTAIL - ORDER ONE PAIR CALIPER: 112X6B - ORDER ONE PAIR
PAD MANUFACTURER COMPOUND PART NO. PAD MANUFACTURER COMPOUND PART NO.
DP SINTERED 0053-1608DS DP SINTERED 0051-1602DS
CALIPER: RADIAL MOUNT - ORDER ONE SET DP ORGANIC 0051-1602DR
PAD MANUFACTURER COMPOUND PART NO.
*See page 62 for brake pad diagram.
DP SINTERED 0052-1606DS
DESCRIPTION FITMENT PART NO.
BRAKE PADS - STOCK CAL DP962 08-UP FLH, 06-17 V-ROD FR & RR 0050-1600DP
BRAKE PADS - STOCK CAL DP986 08-17 DYNA, 08-14 SOFTAIL FRONT 0050-1601DP
BRAKE PADS - STOCK CAL DP987 08-17 SOFTAIL/DYNA REAR 0050-1602DP
ANTI-RATTLE SPRINGS
DESCRIPTION CALIPER PART NO. DESCRIPTION CALIPER PART NO.
ANTI-RATTLE SPRING 125X4R 0052-1801 ANTI-RATTLE SPRING INTEGRATED REAR 0053-1800
ANTI-RATTLE SPRING 137X4B 0052-1801 ANTI-RATTLE SPRING 112X6B 0051-1800
CALIPER SHIM KITS
DESCRIPTION CALIPER PART NO. DESCRIPTION CALIPER PART NO.
5/16” SHIMS 125X2, 125X4S 0019-9000 3/8” SHIMS 125X4R, 125X4SL, 0019-9001
125X4RSPH, 137X4, 137X6, 112X6, 162X2
Hydraulic Lubricant for Caliper Assembly Capsule
DESCRIPTION CALIPER PART NO.
2000-up HD 137X4. 112X6 0019-9004
ASSEMBLY LUBE - 0043-0010 10mm Shims
ANCHOR RODS & BALL ROD ENDS
DESCRIPTION PART NO. DESCRIPTION PART NO.
2” ROD ASSEMBLY - 5/16” BALL ROD ENDS 0028-9802 12” ROD ASSEMBLY - 3/8” BALL ROD ENDS 0028-9912
6” ROD ASSEMBLY - 5/16” BALL ROD ENDS 0028-9806 14” ROD ASSEMBLY - 3/8” BALL ROD ENDS 0028-9914
4” ROD ASSEMBLY - 3/8” BALL ROD ENDS 0028-9904 3/8” X 3/8” - 24 BALL ROD ENDS 0074-0001-CH
6” ROD ASSEMBLY - 3/8” BALL ROD ENDS 0028-9906 1/4” X 1/4” - 28 BALL ROD ENDS 0074-0003-CH
8” ROD ASSEMBLY - 3/8” BALL ROD ENDS 0028-9908 5/16” X 5/16” - 24 BALL ROD ENDS 0074-0004-CH
10” ROD ASSEMBLY - 3/8” BALL ROD ENDS 0028-9910
MASTER CYLINDER REBUILD KITS
DESCRIPTION PART NO. DESCRIPTION PART NO.
5/8” BORE STANDARD 12/96 AND UP 0060-3602 3/4” BORE STANDARD 12/96 AND UP 0060-3702
5/8” BORE STANDARD PRE- 6/96 0060-3603 3/4” BORE STANDARD PRE- 3/96 0060-3703
5/8” BORE STANDARD 6/96 - 11/96 0060-3604 3/4” BORE STANDARD 3/96 - 11/96 0060-3704
5/8” BORE CONTOUR 0060-3605 TOP GASKET FOR CONTOUR MASTER 0060-1019
TOP GASKET FOR CLASSIC MASTER 0060-1010 9/16” BORE CONTOUR 0060-3505
11/16” CLASSIC MASTER CYLINDER 0060-3900 11/16” BORE CONTOUR 0060-3905
RUBBER REPLACEMENT
DESCRIPTION PART NO. DESCRIPTION PART NO.
RENTHAL RUBBER FOR ORIGINAL CONTOUR 0063-1013M ROUND PEG (BIG) (ORDER 1 PER PEG) 0035-9010
AND MERC GRIPS (ORDER 1 PER GRIP)
ROUND PEDAL (SMALL) (ORDER 1 PER PEG) 0035-9009
RUBBER FOR ELITE AND APEX GRIPS 0063-1049M
RUBBER FOR ORIGINAL CONTOUR AND
0031-1087
CONTOUR XL GRIP (ORDER 1 PER GRIP) 0063-1020 MERC FOOT PEGS (ORDER 1 PER PEG)
XLS GRIP (ORDER 1 PER GRIP) 0063-1160M RUBBER FOR ORIGINAL CONTOUR AND 0033-1084M
MERC SHIFT PEGS (ORDER 1 PER PEG)
OVERDRIVE GRIP (ORDER 1 PER GRIP) 0063-1142M
RUBBER FOR ELITE AND APEX FOOT PEGS 0031-1119M
CONTOUR PEG (BIG) (ORDER 1 PER PEG) 0035-9006
RUBBER FOR ELITE AND APEX SHIFT PEGS 0033-1084M
Contour Pedal (small) (Order 1 per Peg) 0035-9007
XLS Peg (Order 1 per Peg) 0031-1215M
Overdrive Peg (Order 1 per Peg) 0031-1203M
BELT DRIVE REPLACEMENT PARTS
BELTS TEETH/SIZE TR NO. DRAG NO. CLUTCH PACK- ALL YEARS, ALL MODELS DRAG NO. QTY USED
1990-2006 FLH, 0179-1912 132T 2” 439202 1120-0264 FRICTION PLATES 2302-1250 7
2008-2016 FLH, 0179-1911 132T 2” 439202 1120-0264 STEEL PLATES 2302-1251 7
2007-2015 DYNA, SOFTAIL, PHATAIL STEEL BACKING PLATE DS-360177 1
0179-1909, 0179-1906, 0179-1910, 0179-1907 142T 2” 439208 1120-0262
CLUTCH PACK KIT 1131-2455
1991-2006 SOFTAIL, PHATAIL 140T 2” N/A 1120-0095
0179-1905, 0179-1904
30 PERFORMANCEMACHINE.COM
