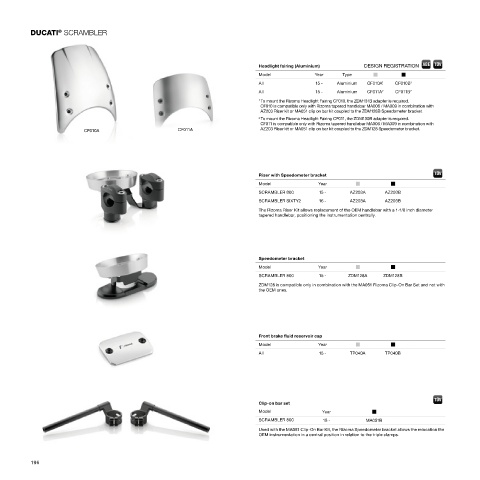

DUCATI SCRAMBLER
®

Headlight fairing (Aluminium) DESIGN REGISTRATION
Model Year Type
All 15 - Aluminium CF010A 1 CF010B 1
All 15 - Aluminium CF011A 2 CF011B 2
1 To mount the Rizoma Headlight Fairing CF010, the ZDM131B adapter is required.
CF010 is compatible only with Rizoma tapered handlebar MA006 / MA009 in combination with
AZ203 Riser kit or MA051 clip on bar kit coupled to the ZDM128B Speedometer bracket.
2 To mount the Rizoma Headlight Fairing CF011, the ZDM130B adapter is required.
CF011 is compatible only with Rizoma tapered handlebar MA006 / MA009 in combination with
CF010A CF011A AZ203 Riser kit or MA051 clip on bar kit coupled to the ZDM128 Speedometer bracket.

Riser with Speedometer bracket
Model Year
SCRAMBLER 800 15 - AZ203A AZ203B
SCRAMBLER SIXTY2 16 - AZ203A AZ203B
The Rizoma Riser Kit allows replacement of the OEM handlebar with a 1-1/8 inch diameter
tapered handlebar, positioning the instrumentation centrally.

Speedometer bracket
Model Year
SCRAMBLER 800 15 - ZDM128A ZDM128B
ZDM128 is compatible only in combination with the MA051 Rizoma Clip-On Bar Set and not with
the OEM ones.

Front brake fluid reservoir cap
Model Year
All 15 - TP040A TP040B

Clip-on bar set
Model Year
SCRAMBLER 800 15 - MA051B
Used with the MA051 Clip-On Bar Kit, the Rizoma Speedometer bracket allows the relocation the
OEM instrumentation in a central position in relation to the triple clamps.

196
