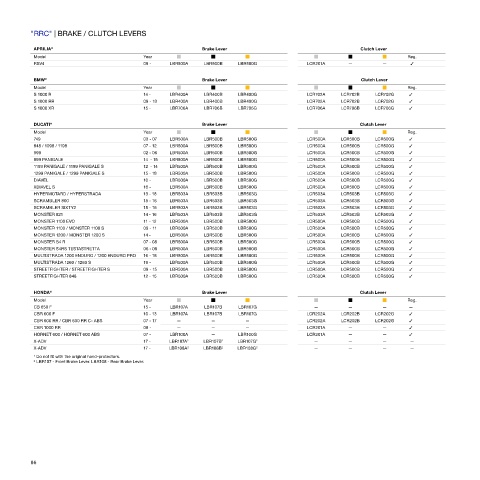

"RRC" | BRAKE / CLUTCH LEVERS

APRILIA ® Brake Lever Clutch Lever
Model Year Reg.
RSV4 09 - LBR500A LBR500B LBR500G LCR201A — — ✓

BMW ® Brake Lever Clutch Lever
Model Year Reg.
S 1000 R 14 - LBR400A LBR400B LBR400G LCR702A LCR702B LCR702G ✓
S 1000 RR 09 - 18 LBR400A LBR400B LBR400G LCR702A LCR702B LCR702G ✓
S 1000 XR 15 - LBR706A LBR706B LBR706G LCR706A LCR706B LCR706G ✓

DUCATI ® Brake Lever Clutch Lever
Model Year Reg.
749 03 - 07 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
848 / 1098 / 1198 07 - 12 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
999 02 - 06 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
899 PANIGALE 14 - 15 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
1199 PANIGALE / 1199 PANIGALE S 12 - 14 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
1299 PANIGALE / 1299 PANIGALE S 15 - 18 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
DIAVEL 10 - LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
XDIAVEL S 16 - LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
HYPERMOTARD / HYPERSTRADA 13 - 18 LBR503A LBR503B LBR503G LCR503A LCR503B LCR503G ✓
SCRAMBLER 800 15 - 16 LBR503A LBR503B LBR503G LCR503A LCR503B LCR503G ✓
SCRAMBLER SIXTY2 15 - 16 LBR503A LBR503B LBR503G LCR503A LCR503B LCR503G ✓
MONSTER 821 14 - 16 LBR503A LBR503B LBR503G LCR503A LCR503B LCR503G ✓
MONSTER 1100 EVO 11 - 12 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
MONSTER 1100 / MONSTER 1100 S 09 - 11 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
MONSTER 1200 / MONSTER 1200 S 14 - LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
MONSTER S4 R 07 - 08 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
MONSTER S4RS TESTASTRETTA 06 - 08 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
MULTISTRADA 1200 ENDURO / 1200 ENDURO PRO 16 - 18 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
MULTISTRADA 1260 / 1260 S 19 - LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
STREETFIGHTER / STREETFIGHTER S 09 - 15 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓
STREETFIGHTER 848 12 - 15 LBR500A LBR500B LBR500G LCR500A LCR500B LCR500G ✓

HONDA ® Brake Lever Clutch Lever
Model Year Reg.
CB 650 F 15 - LBR107A LBR107B LBR107G — — — —
CBR 600 F 10 - 13 LBR107A LBR107B LBR107G LCR202A LCR202B LCR202G ✓
CBR 600 RR / CBR 600 RR C- ABS 07 - 17 — — — LCR202A LCR202B LCR202G ✓
CBR 1000 RR 08 - — — — LCR201A — — ✓
HORNET 600 / HORNET 600 ABS 07 - LBR100A — LBR100G LCR201A — — ✓
X-ADV 17 - LBR107A 2 LBR107B 2 LBR107G 2 — — — —
X-ADV 17 - LBR108A 2 LBR108B 2 LBR108G 2 — — — —
1 Do not fit with the original hand-protectors.
² LBR107 - Front Brake Lever. LBR108 - Rear Brake Lever.

86
