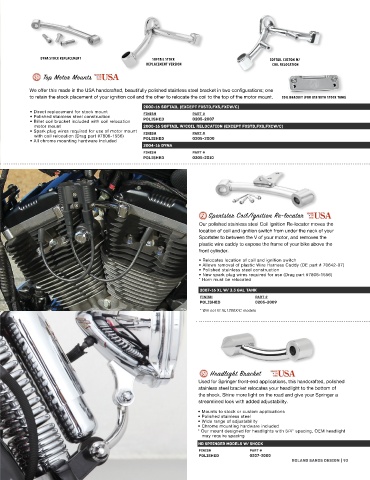

Page 95 - Roland Sands Design

DYNA STOCK REPLACEMENT SOFTAIL STOCK SOFTAIL CUSTOM W/
REPLACEMENT VERSION COIL RELOCATION
Top Motor Mounts

We offer this made in the USA handcrafted, beautifully polished stainless steel bracket in two configurations; one
to retain the stock placement of your ignition coil and the other to relocate the coil to the top of the motor mount. COIL BRACKET (FOR USE WITH STOCK TANK)

2000-16 softail (except fxstd,fxs,fxcw/c)
• Direct replacement for stock mount FINISH PART #
• Polished stainless steel construction polished 0205-2007
• Billet coil bracket included with coil relocation
motor mount 2000-16 softail w/coil relocation (except fxstd,fxs,fxcw/c)
• Spark plug wires required for use of motor mount FINISH PART #
with coil relocation (Drag part #7806-1556) polished 0205-2000
• All chrome mounting hardware included
2004-16 dyna
FINISH PART #
polished 0205-2010

Sportster Coil/Ignition Re-locator

Our polished stainless steel Coil Ignition Re-locator moves the
location of coil and ignition switch from under the neck of your
Sportster to between the V of your motor, and removes the
plastic wire caddy to expose the frame of your bike above the
front cylinder.
• Relocates location of coil and ignition switch
2004-16 xl sportster • Allows removal of plastic Wire Harness Caddy (OE part # 70642-07)
• Polished stainless steel construction
FINISH PART #
chrome 0217-2006-ch • New spark plug wires required for use (Drag part #7806-1556)
* Horn must be relocated
black ops 0217-2006-tbp
gloss black 0217-2006-bp 2007-16 xl w/ 3.3 gal tank
• Hardware included FINISH PART #
NOSTALGIA INSPECTION COVER polished 0205-2009
• Matching rear belt guard available seperately
• Pairs with Front Pulley Cover on page 91
* Will not fit XL1200X/C models

Headlight Bracket
Used for Springer front-end applications, this handcrafted, polished
stainless steel bracket relocates your headlight to the bottom of
the shock. Shine more light on the road and give your Springer a
streamlined look with added adjustability.
• Mounts to stock or custom applications
• Chrome w/ brass badge • Polished stainless steel
• Wide range of adjustability
• Chrome mounting hardware included
* Our mount designed for headlights with 3/4” spacing, OEM headlight
may require spacing
hd springer models w/ shock
FINISH PART #
polished 0207-2000
ROLAND SANDS DESIGN | 93
