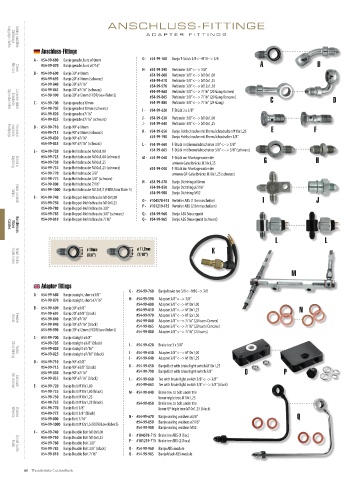

Page 60 - Thunderbike Parts Catalog 2021

ANSCHLUSS-FITTINGE

ADAPTER FITTINGS

Sidebags
Swing saddles
Luggage racks
Anschluss-Fittinge
A - #54-99-680 Banjo gerade, kurz ø10mm G - #54-99-760 Banjo T-Stück 3/8<--M10--> 3/8
#54-99-870 Banjo gerade, kurz ø7/16“ A B
H- #54-99-590 Verbinder 3/8”<--> 3/8”
B - #54-99-690 Banjo 30° ø10mm #54-99-600 Verbinder 3/8”<--> M10x1,00
Cover
Mirrors
#54-99-695 Banjo 20° ø10mm (schwarz) #54-99-610 Verbinder 3/8”<--> M10x1,25
#54-99-840 Banjo 30° ø7/16“ #54-99-970 Verbinder 3/8”<--> M12x1,50
#54-99-845 Banjo 30° ø7/16“ (schwarz) #54-99-860 Verbinder 3/8”<--> 7/16“ (20 Gang Konvex)
#54-99-990 Banjo 30° ø12mm (FXDR/Low Rider S)
#54-99-865 Verbinder 3/8”<--> 7/16“ (20 Gang Koncave) C D
C - #54-99-700 Banjo gerade ø10mm #54-99-880 Verbinder 3/8”<--> 7/16“ (24 Gang)
brackets
#54-99-705 Banjo gerade ø10mm (schwarz) I - #54-99-620 T-Stück 3 x 3/8”
Speedometer
License plate
#54-99-820 Banjo gerade ø7/16“
#54-99-825 Banjo gerade ø7/16“ (schwarz) J - #54-99-630 Verbinder 3/8”<--> M10x1,00
J - #54-99-640 Verbinder 3/8”<--> M10x1,25
D - #54-99-710 Banjo 90° ø10mm E F
#54-99-715 Banjo 90° ø10mm (schwarz) K - #54-99-650 Banjo Hohlschraube mit Bremslichtschalter M10x1,25
#54-99-830 Banjo 90° ø7/16“ #54-99-790 Banjo Hohlschraube mit Bremslichtschalter 3/8“
Forward
controls
Footpegs
#54-99-835 Banjo 90° ø7/16“ (schwarz) L - #54-99-660 T-Stück mit Bremslichtschalter 3/8”<--> 3/8”
E - #54-99-720 Banjo Hohlschraube M10x1,00 #54-99-665 T-Stück mit Bremslichtschalter 3/8”<--> 3/8” (schwarz)
#54-99-725 Banjo Hohlschraube M10x1,00 (schwarz) M - #54-99-040 T-Stück zur Montage unter der G H
#54-99-730 Banjo Hohlschraube M10x1,25 unteren Gabelbrücke M10x1,25
#54-99-735 Banjo Hohlschraube M10x1,25 (schwarz) #54-99-050 T-Stück zur Montage unter der
Electric
Lighting
#54-99-770 Banjo Hohlschraube 3/8“ unteren GP-Gabelbrücke M10x1,25 (schwarz)
#54-99-775 Banjo Hohlschraube 3/8“ (schwarz)
#54-99-800 Banjo Hohlschraube 7/16“ N - #54-99-670 Banjo Dichtring ø10mm
#54-99-1000 Banjo Hohlschraube M12x1,5 (FXDR/Low Rider S) #54-99-850 Banjo Dichtring ø7/16“
#54-99-980 Banjo Dichtring M12
F - #54-99-740 Banjo Doppel-Hohlschraube M10x1,00 I J
Grips
#54-99-750 Banjo Doppel-Hohlschraube M10x1,25 O - #104578-F15 Verteiler ABS (1 Bremsscheibe)
Hand control
#54-99-780 Banjo Doppel-Hohlschraube 3/8“ P - #101219-F15 Verteiler ABS (2 Bremsscheiben)
#54-99-785 Banjo Doppel-Hohlschraube 3/8“ (schwarz) Q - #54-99-960 Banjo ABS Steuergerät
#54-99-810 Banjo Doppel-Hohlschraube 7/16“ Q - #54-99-965 Banjo ABS Steuergerät (schwarz)
Riser
Cables
Handlebars
L L
ø 10mm ø 11,2mm K
(3/8“) (7/16“)
Front forks
Triple trees
M
Adapter fittings
G - #54-99-760 Banjo brake tee 3/8<--M10--> 3/8
Shocks
A - #54-99-680 Banjo straight, short ø3/8“
Swingarms
#54-99-870 Banjo straight, short ø7/16“ H- #54-99-590 Adapter 3/8”<--> 3/8”
#54-99-600 Adapter 3/8”<--> M10x1,00
B - #54-99-690 Banjo 30° ø3/8“ #54-99-610 Adapter 3/8”<--> M10x1,25 N
#54-99-695 Banjo 20° ø3/8“ (black) #54-99-970 Adapter 3/8”<--> M12x1,50
#54-99-840 Banjo 30° ø7/16“ #54-99-860 Adapter 3/8”<--> 7/16“ (20 turns Convex)
#54-99-840 Banjo 30° ø7/16“ (black) #54-99-865 Adapter 3/8”<--> 7/16“ (20 turns Concave)
Seats
Fender
#54-99-990 Banjo 30° ø12mm (FXDR/Low Rider S) #54-99-880 Adapter 3/8”<--> 7/16“ (24 turns)
C - #54-99-700 Banjo straight ø3/8“
#54-99-705 Banjo straight ø3/8“ (black) I - #54-99-620 Brake tee 3 x 3/8”
#54-99-820 Banjo straight ø7/16“
#54-99-825 Banjo straight ø7/16“ (black) J - #54-99-630 Adapter 3/8”<--> M10x1,00
Tanks
J - #54-99-640 Adapter 3/8”<--> M10x1,25
Chin fairing
D - #54-99-710 Banjo 90° ø3/8“
#54-99-715 Banjo 90° ø3/8“ (black) K - #54-99-650 Banjo Bolt with brake light switch M10x1,25
#54-99-830 Banjo 90° ø7/16“ #54-99-790 Banjo Bolt with brake light switch 3/8“ O P
#54-99-835 Banjo 90° ø7/16“ (black) L - #54-99-660 Tee with brake light switch 3/8”<--> 3/8”
E - #54-99-720 Banjo Bolt M10x1,00 #54-99-665 Tee with brake light switch 3/8”<--> 3/8” (black)
Exhaust
Air cleaner
#54-99-725 Banjo Bolt M10x1,00 (black) M - #54-99-040 Brake tee, to bolt under the
#54-99-730 Banjo Bolt M10x1,25 lower triple tree M10x1,25
#54-99-735 Banjo Bolt M10x1,25 (black) #54-99-050 Brake tee, to bolt under the
#54-99-770 Banjo Bolt 3/8“ lower GP triple tree M10x1,25 (black)
#54-99-775 Banjo Bolt 3/8“ (black) Q
#54-99-800 Banjo Bolt 7/16“ N - #54-99-670 Banjo sealing washers ø3/8”
Wheels
Brakes
#54-99-1000 Banjo Bolt M12x1,5 (FXDR/Low Rider S) #54-99-850 Banjo sealing washers ø7/16“
#54-99-980 Banjo sealing washers M12
F - #54-99-740 Banjo Double Bolt M10x1,00
#54-99-750 Banjo Double Bolt M10x1,25 O - #104578-F15 Brake tee ABS (1 Disc)
#54-99-780 Banjo Double Bolt 3/8“ P - #101219-F15 Brake tee ABS (2 Discs)
#54-99-785 Banjo Double Bolt 3/8“ (black) Q - #54-99-960 Banjo ABS module
Tools
Small parts
#54-99-810 Banjo Double Bolt 7/16“ Q - #54-99-965 Banjo black ABS module
60 Thunderbike CustomBook
