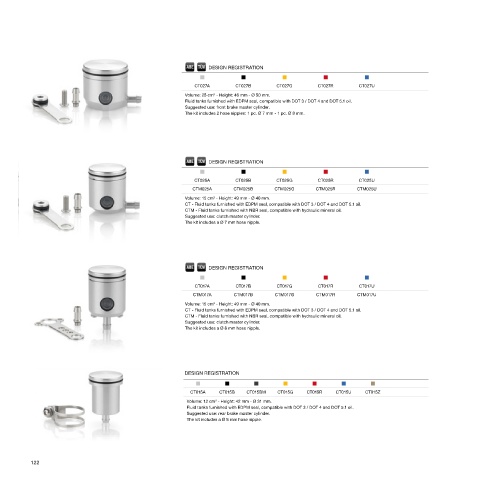

P. 123
DESIGN REGISTRATION
CT027A CT027B CT027G CT027R CT027U
3
Volume: 25 cm - Height: 46 mm - Ø 50 mm.
Fluid tanks furnished with EDPM seal, compatible with DOT 3 / DOT 4 and DOT 5.1 oil.
Suggested use: front brake master cylinder.
The kit includes 2 hose nipples: 1 pc. Ø 7 mm - 1 pc. Ø 8 mm.
DESIGN REGISTRATION
CT025A CT025B CT025G CT025R CT025U
CTM025A CTM025B CTM025G CTM025R CTM025U
Volume: 15 cm - Height: 49 mm - Ø 40 mm.
3
CT - Fluid tanks furnished with EDPM seal, compatible with DOT 3 / DOT 4 and DOT 5.1 oil.
CTM - Fluid tanks furnished with NBR seal, compatible with hydraulic mineral oil.
Suggested use: clutch master cylinder.
The kit includes a Ø 7 mm hose nipple.
DESIGN REGISTRATION
CT017A CT017B CT017G CT017R CT017U
CTM017A CTM017B CTM017G CTM017R CTM017U
Volume: 15 cm - Height: 49 mm - Ø 40 mm.
3
CT - Fluid tanks furnished with EDPM seal, compatible with DOT 3 / DOT 4 and DOT 5.1 oil.
CTM - Fluid tanks furnished with NBR seal, compatible with hydraulic mineral oil.
Suggested use: clutch master cylinder.
The kit includes a Ø 8 mm hose nipple.
DESIGN REGISTRATION
CT015A CT015B CT015BM CT015G CT015R CT015U CT015Z
Volume: 12 cm - Height: 42 mm - Ø 31 mm.
3
Fluid tanks furnished with EDPM seal, compatible with DOT 3 / DOT 4 and DOT 5.1 oil.
Suggested use: rear brake master cylinder.
The kit includes a Ø 8 mm hose nipple.
122
